2018年10月17日 09:04:15 View: Source:Junhao wire Author:junhao

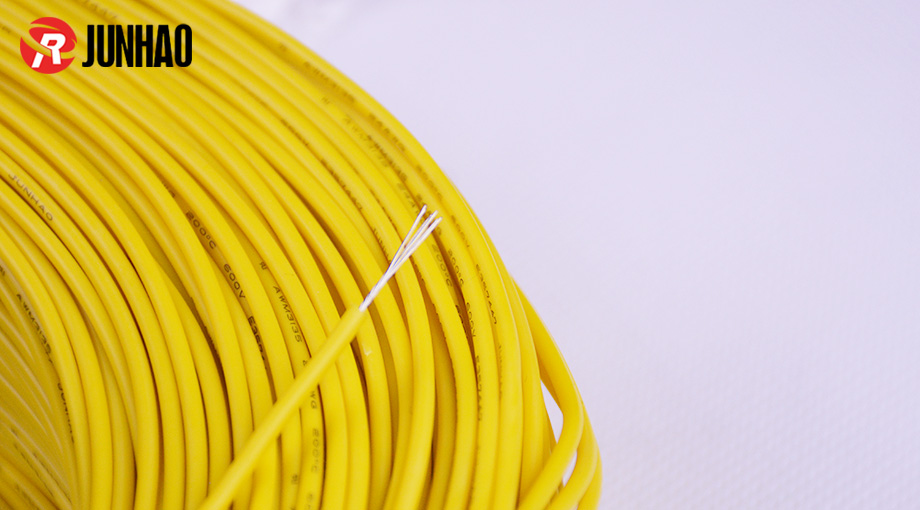

| Product Name | UL3135 26AWG Silicone Wire |
| Used | Internal wiring of appliances |
| Conductor Size | 7/0.16TS |
| Cross section | 0.14mm² |
| Conductor Material | Stranded Tinned Copper |
| Insulation Material | Silicone Rubber |
| Insulation Thickness | 0.76mm |
| Overall Diameter | 1.98mm |
| Rated Voltage | 600V |
| Temperature Range | -40 To +200 Degree Celsius |
| Produtct Color | Red , Black , Yellow , Bule , White , Brown , Green , Yellow/Green |
| Packaging | 305 Meters/Roll |
| Certification | UL3135 Certificated , ROHS , SGS , ISO9001:2015 , IATF16949:2016 |
| UL File NO | E357447 |
| MOQ | 10 Rolls |
| Application | Electrical equipment and high temperature environment ,etc.. |
