2 Core Silicone Insulation 0.75mm2 Cable with VDE certificatePosition：主页 > English > Products > Silicone Wire > UL3135 Silicone Wire >
2018年10月17日 09:25:25 View: Source:Junhao wire Author:Lee

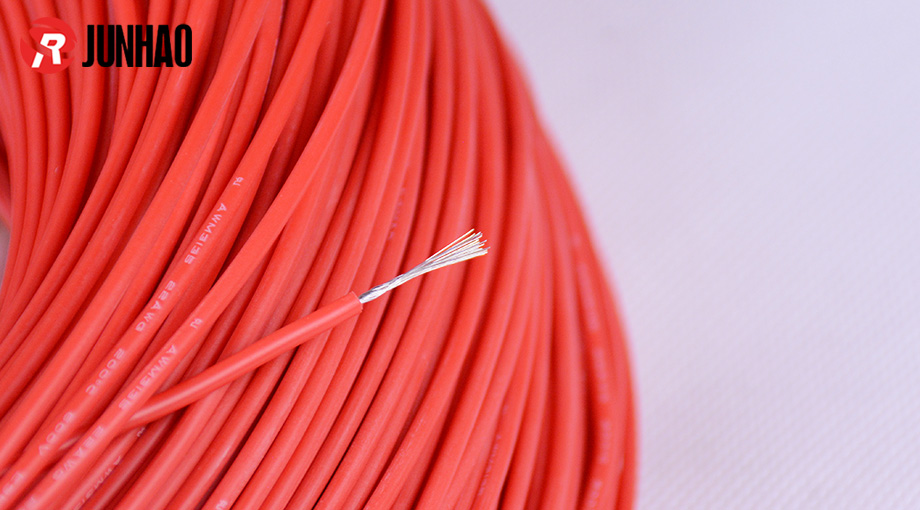

| Product Name | UL3135 22AWG Silicone Wire |
| Used | Internal wiring of appliances |
| Conductor Size | 22/0.14TS |
| Cross section | 0.34mm² |
| Conductor Material | Stranded Tinned Copper |
| Insulation Material | Silicone Rubber |
| Insulation Thickness | 0.8mm |
| Overall Diameter | 2.36mm |
| Rated Voltage | 600V |
| Temperature Range | -40 To +200 Degree Celsius |
| Produtct Color | Red , Black , Yellow , Bule , White , Brown , Green , Yellow/Green |
| Packaging | 305 Meters/Roll |
| Certification | UL3135 Certificated , ROHS , SGS , ISO9001:2015 , IATF16949:2016 |
| UL File NO | E357447 |
| MOQ | 10 Rolls |
| Application | Electrical equipment and high temperature environment ,etc.. |
