2018年09月03日 14:32:42 View: Source:Junhao wire Author:Lee

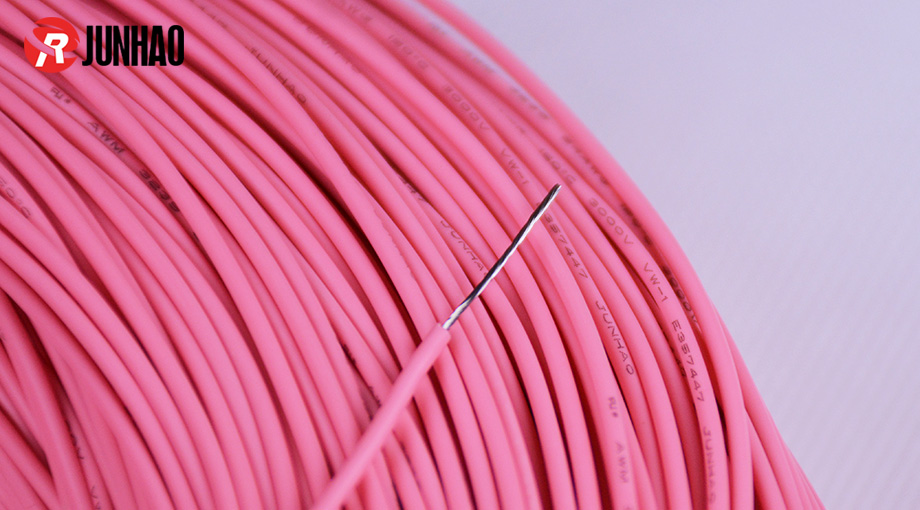

| Product Name | UL3239 24awg 3KV High Voltage Silicone Wire |
| Used | Internal wiring of appliances |
| Conductor Size | 14/0.14TS |
| Cross section | 0.22mm² |
| Conductor Material | Stranded Tinned Copper |
| Insulation Material | Silicone Rubber |
| Insulation Thickness | 0.5mm |
| Overall Diameter | 1.60mm |
| Rated Voltage | 3KV |
| Rated Temperature | 200 Degree Celsius |
| Produtct Color | Red , Black , Yellow , Bule , White , Brown , Green , Yellow/Green , Clear |
| Packaging | 610 Meters/Roll |
| Certification | UL3239 Certificated , ROHS , SGS , ISO9001:2015 , IATF16949:2016 |
| UL File NO | E357447 |
| MOQ | 10 Rolls |
| Application | Electrical equipment and high temperature environment ,etc.. |
