2 Core Silicone Insulation 0.75mm2 Cable with VDE certificatePosition：主页 > English > Products > Braided Wire > UL3122 Braided Wire >
2018年10月22日 10:26:29 View: Source:Junhao Wire Author:Lee

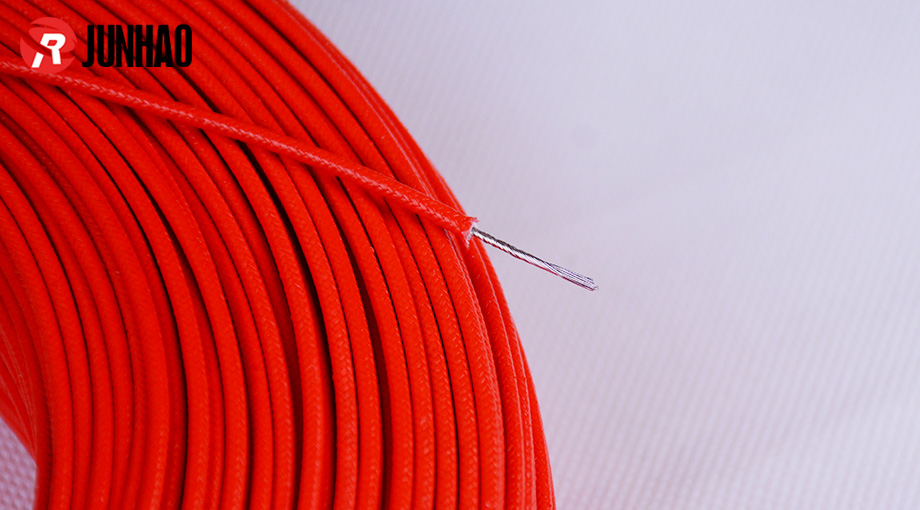

| Product Name | UL3122 18AWG Silicone Braided Wire |
| Used | Internal wiring of appliances |
| Conductor Size | 30/0.18TS |
| Cross section | 0.76mm² |
| Conductor Material | Stranded Tinned Copper |
| Insulation Material | Silicone Rubber + Fiberglass |
| Insulation Thickness | 0.6mm(Silicone Rubber + Fiberglass) |
| Overall Diameter | 2.35mm |
| Rated Voltage | 300V |
| Temperature Range | -40 To +200 Degree Celsius |
| Produtct Color | Red , Black , Yellow , Bule , White , Brown , Green , Yellow/Green，etc. |
| Packaging | 305 Meters/Roll |
| Certification | UL3122 Certificated , ROHS , SGS , ISO9001:2015 , IATF16949:2016 |
| UL File NO | E357447 |
| MOQ | 10 Rolls |
| Application | Electrical equipment and high temperature environment ,etc.. |
