2018年12月17日 10:04:08 View: Source:Junhao Wire Author:Lee

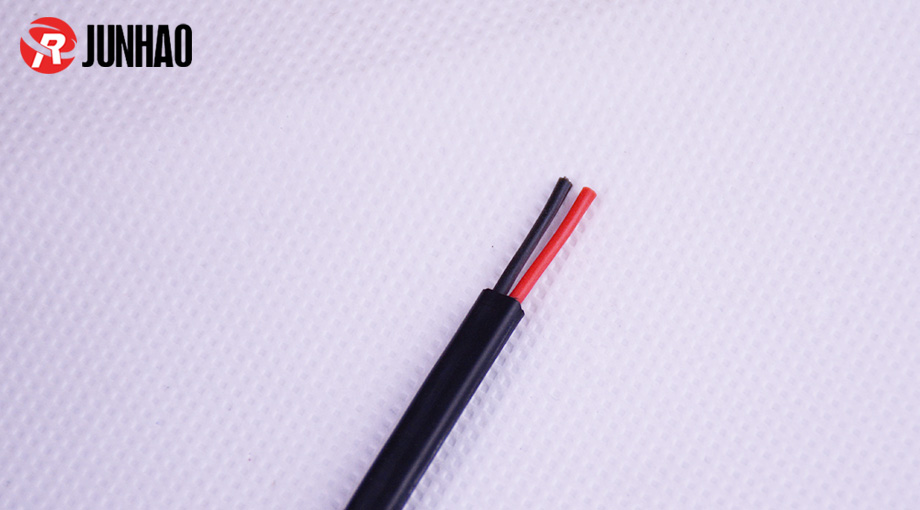

| Products Name | Black 2 Core Flat Cable |
| Conductor Construction | 12/0.18TS |
| Cross Section | 0.3mm² |
| Conductor Material | Stranded Tinned Copper |
| Insulation Material | Silicone Rubber |
| Jacket Material | Silicone Rubber |
| Overall Diameter | 2.9*4.8mm |
| Temperature Range | -40 ℃~ +200 ℃ |
| Rated Voltage | 600V |
| O.D.Tolerance | ±0.1mm |
| Insulation Color | Red , Black or according to customer requirements |
| Jacket Color | Black |
| Certification | ROHS,SGS,ISO9001:2015,IATF 16949:2016,UL Certificate,SAA Certificate |
| Packaging | 200 Meters/Roll or according to customer requirements |
| MOQ | 10 Rolls |
| Applications | Connection lines for mechanical equipment, industrial machines, electronic products, automation equipment, household appliances,medical equipment, car navigation systems, automotive control systems, etc. |
