2 Core Silicone Insulation 0.75mm2 Cable with VDE certificatePosition：主页 > English > Products > Flat Cable >
2018年12月05日 14:41:26 View: Source:Junhao Wire Author:Lee

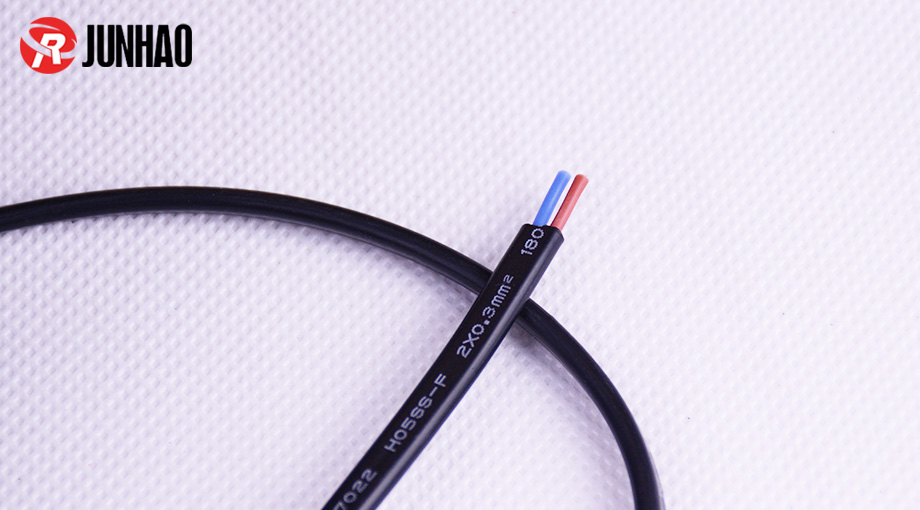

| Products Name | 2 Core Flat Cable |
| Conductor Construction | 12/0.18TS |
| Cross Section Area | 0.3mm² |
| Conductor Material | Stranded Tinned Copper Wire |
| Insulation Material | Silicone Rubber |
| Product Size | 2.9*4.8mm |
| Temperature Range | -40 ℃ ~ +200 ℃ |
| Rated Voltage | 300V/600V |
| O.D.Tolerance | ±0.1mm |
| Insulation Color | Blue, Brown |
| Jacket Color | Black |
| Certification | ROHS , SGS , ISO9001:2015 , IATF 16949:2016 |
| Packaging | 200 Meters/Roll |
| MOQ | 10 Rolls |
| Applications | Connection lines for mechanical equipment, industrial machines, electronic products, automation equipment, household appliances,medical equipment, car navigation systems, automotive control systems, etc. |
