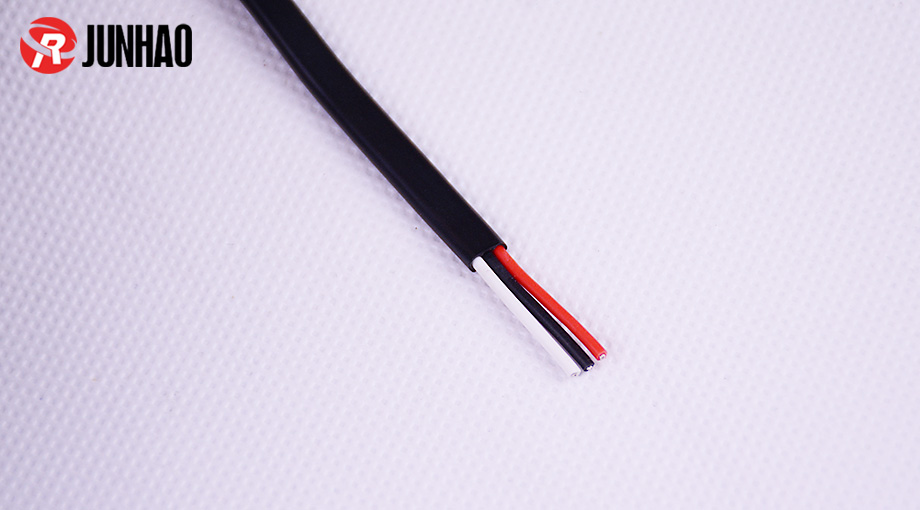

| Products Name | 3 Core Silicone Rubber Flat Cable |
| Conductor Construction | 12/0.18TS |
| Cross Section Area | 0.30mm² |
| Conductor Material | Tinned Copper Wire |
| Insulation Material | Silicone Rubber |
| Overall Diameter | 2.9*5.5mm |
| Temperature Range | -40 ℃ To +200 ℃ |
| Rated Voltage | 300V/600V |
| O.D.Tolerance | ±0.1mm |
| Insulation Color | According to customer requirements |
| Certification | ROHS , SGS , ISO9001:2015 , IATF 16949:2016 |
| Packaging | 300 Meters/Roll |
| MOQ | 10 Rolls |
| Applications | Internal wiring of appliances |
